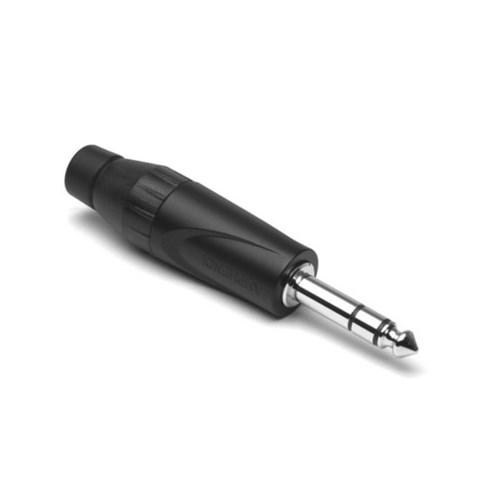

Amphenol 1/4 Inch Phone Plug Jumbo Stereo Black

Product Code: JS3PB

Key Features

T Series - Jumbo Cable Range - 1/4 and 3.5mm Plugs

$15.21 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Amphenol 1/4" Phone Plug Jumbo, Stereo, Black

Amphenol offers two ranges of 1/4” Phone plug connectors to satisfy the needs of the manufacturer and the end user. The PRO – a heavy duty on-road plug, offers different features and benefits and the most suitable type will be determined by application, budget and personal choice.

Features
  • JUMBO Cable clamping capacity
  • Suits Cable OD 7.5mm (0.295”) to 10.5mm (0.413”)
  • Mono or Stereo (TRS)
  • Stylised shell design with Ergonomic grip
  • Robust diecast shell in Satin nickel or Black finish
  • Nickel or Gold contact plating
  • Keyed shell
  • Great solderability
  • Increased solder area on ground contact
  • Precision machined contacts
  • Quick and easy assembly
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of contacts 3 Pole Tip Ring Sleeve (Stereo)
Termination Solder
Max. Wire Gauge - Stranded Wire 2 Pole (Mono): AWG 16˜1.5mm^2
3 Pole (Stereo): AWG 18˜1mm^2
Flammability rating of insulating plastics UL94V-0
Solderability, complies with IEC 68-2-20
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity 10A (Depends on Mating Connector and Cable)
Typical Contact Resistance Depends on Mating Connector

Insulation resistance (initial)
After Damp Heat Test

>2GΩ
≥1GΩ
Dielectric Withstand Voltage 2 Pole : 1.5 kV dc
3 Pole : 1 kV dc

CLIMATIC CHARACTERISTICS

Protection Class IP40
Operating Temperature -25°C to +75°C (-13°F to + 167°F)

MECHANICAL CHARACTERISTICS

Insertion and Withdrawal force ≥10N - ≤30N
Weight - Thermoplastic Backshell 28g (0.061lb)
Weight - Metal Backshell 35g (0.077lb)
Typical Cable Retenton Force 22kg to 44kg (50lb to 100lb) - Dependent on cable material and diameter
Cable O.D. - Standard Jaw NA
Cable O.D. - Large Jaw NA
Cable O.D. - Jumbo 7.5mm to 10.5mm (0.295” to 0.413”)
Mechanical Operations 1000

MATERIALS

Connector Shell Material Diecast Zinc Alloy EZDA No.3
Shell Finish Satin Nickel or Black Polyester
Insulators UL94 V-0 PBT Resin or Modified PPE Resin - Black
Boot / Backshell

UL94 V-0 PBT Resin or Modified PPE Resin - Black or Metal CuZn39Pb3
Cable Clamp

UL94 V-0 PBT Modified PPO Resin - Black
Cable Bushing

Santoprene
Contacts / Plating

Brass /Ni or Au over 2µm Ni
