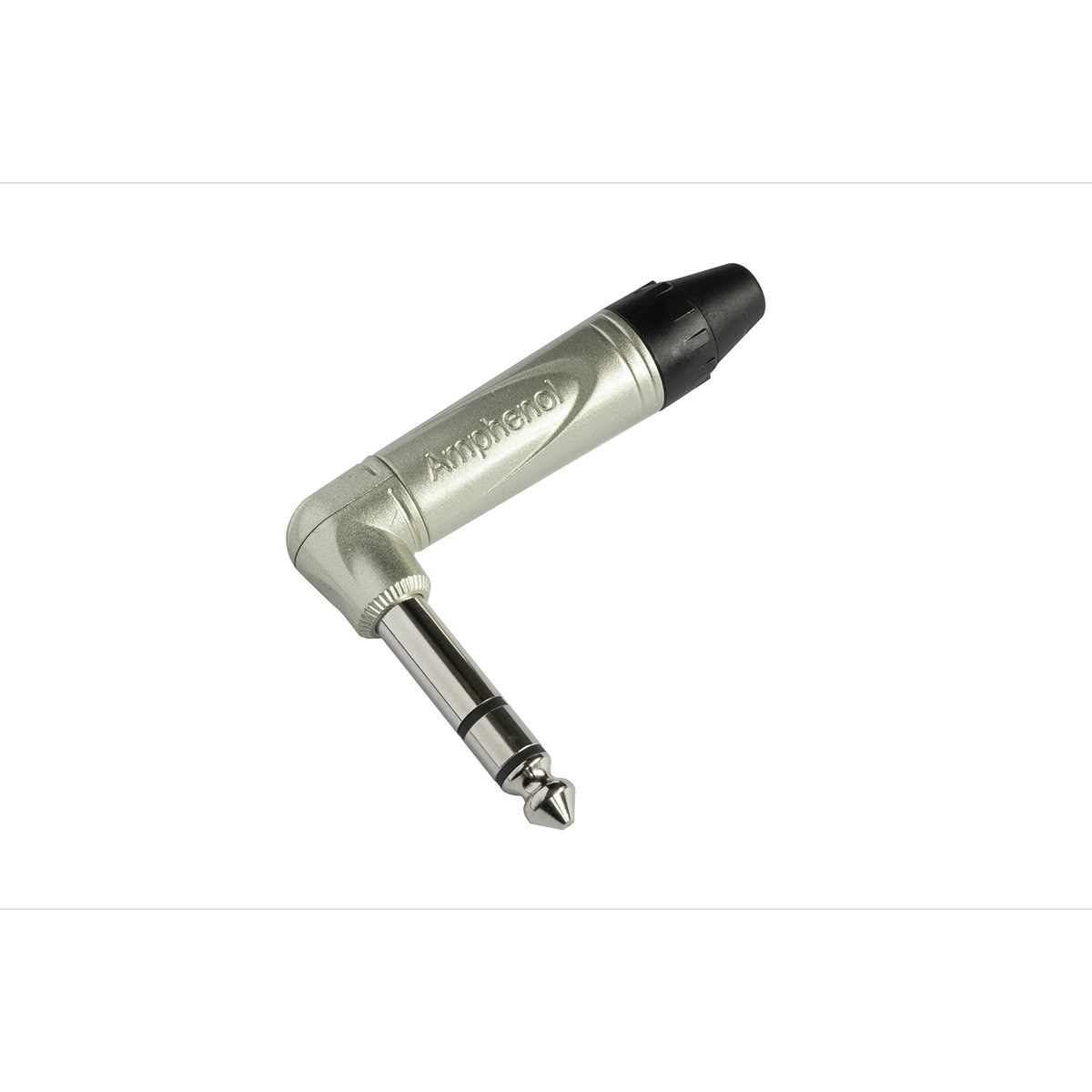

Name: Amphenol 1/4 Inch Phone Plug 90 degree TRS
Price: 10.47 AUD

(EA)

Qty	Each (inc GST)	Each

Number of contacts	3 Pole Tip Ring Sleeve (Stereo)
Termination	Solder
Max. Wire Gauge - Stranded Wire	2 Pole (Mono): AWG 16˜1.5mm 3 Pole (Stereo): AWG 18˜1mm
Flammability rating of insulating plastics	UL94V-0
Solderability, complies with	IEC 68-2-20
Environmental	Complies with EU RoHS 2 Directive 2011/65/EU

Current Carrying Capacity	10A (Depends on Mating Connector and Cable)
Typical Contact Resistance	Depends on Mating Connector
Insulation resistance (initial) After Damp Heat Test	>2GΩ ≥1GΩ
Dielectric Withstand Voltage	2 Pole : 1.5 kV dc 3 Pole : 1 kV dc

Protection Class	IP40
Operating Temperature	-25°C to +75°C (-13°F to + 167°F)

Insertion and Withdrawal force	≥10N - ≤30N
Weight Thermoplastic Backshell Metal Backshell	28g (0.061lb) 35g (0.077lb)
Typical Cable Retenton Force	22kg to 44kg (50lb to 100lb) - Dependent on cable material and diameter.
Cable O.D. Standard Jaw (T-Series) Large Jaw (T-Series) Standard Clamp (Q-Series) Jumbo	3mm to 5.5mm (0.118” to 0.216”) 5.5mm to 6.5mm (0.216” to 0.255”) NA NA
Mechanical Operations	1000

Connector Shell Material	Diecast Zinc Alloy EZDA No.3
Shell Finish	Satin Nickel or Black Polyester
Insulators	UL94 V-0 PBT Resin or Modified PPE Resin - Black
Boot / Backshel	UL94 V-0 PBT Resin or Modified PPE Resin - Black or Metal CuZn39Pb3
Cable Clamp	UL94 V-0 PBT Modified PPO Resin - Black
Cable Bushing	Santoprene
Contacts / Plating	Brass /Ni or Au over 2µm Ni

Amphenol 1/4 Inch Phone Plug 90 degree TRS
