AKG GN15 ESP 15cm 6 Inch High performance modular gooseneck module DAM Series

Product Code: AKG 2765H00450

Key Features
Rugged 15 cm gooseneck module with programmable mute switch (on/off, push-to-talk, push-to-mute), high RFI immunity, LED ring, XLR connector
$805.31 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

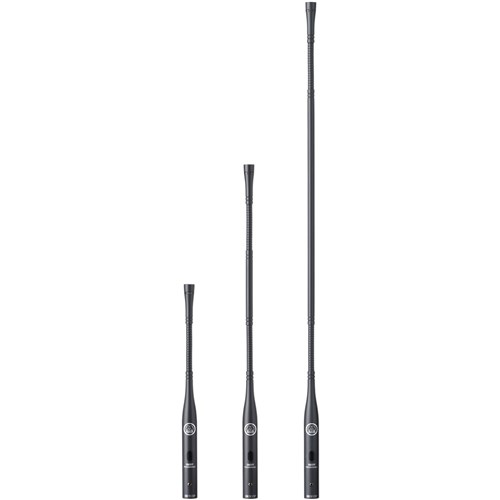

The DAM Series GN ESP gooseneck modules for fixed and mobile installation features a programmable mute switch that can be set to various functions, e.g. on/off, push-to-talk or push-to-mute. Together with the clearly visible LED ring for MIC ON/OFF indication, the GN ESP modules can serve perfectly as a small-discussion system. The GN ESP gooseneck modules are available in three different lengths: 15cm (6in); 30cm (12in) and 50cm (20in). The electronic circuit design provides high immunity to radio-frequency interference. The gooseneck module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 20 - 20000 Hz
Recommended load impedance 2000 Ohms

Dimensions

Diameter 20 mm

Design

Finish matte dark gray

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 9 to 52 V
Current 3.5 mA
