Platinum Tools 10Gig Termination Kit

Platinum Tools 10Gig Termination Kit

Streaming media demands robust, dependable networks, including 10-Gig Cat6A shielded cable, to provide the necessary expanded bandwidth. However, these larger, shielded cables require special connectors and tools. Our 10-Gig shielded connector and Tele-TitanXg Crimp Tool are specifically designed to terminate Cat6A cables. A pairing that assures you will achieve 10-Gig performance... a true 10Gig Termination System.

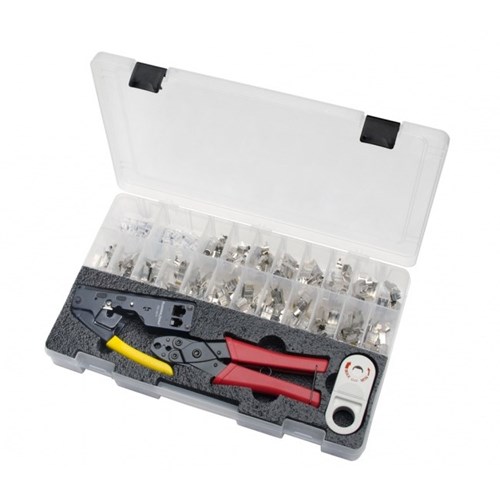

What you get:

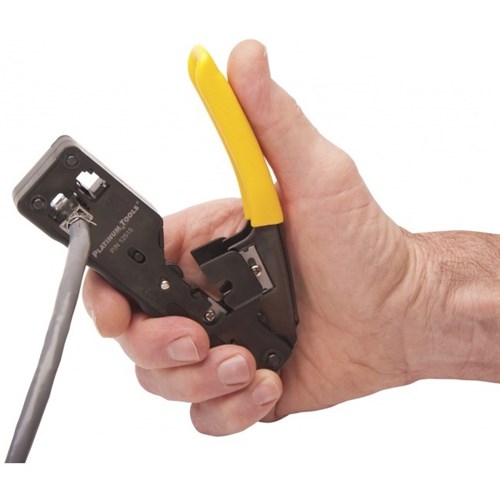

Tele-TitanXg® Cat6A/10Gig Crimp Tool, P/N 12515
- Specifically made for terminating, P/N 106190 Cat6A/10Gig connectors
- Straight action vertical crimp force
- Minimal hand force for a perfect crimp

RJ45 Cat6A/10Gig Shielded Connectors 100pcs, P/N 106190
- Max cable OD: 8.5mm/0.335
- Max conductor OD: 1.35mm/0.053
- UL and RoHS compliant

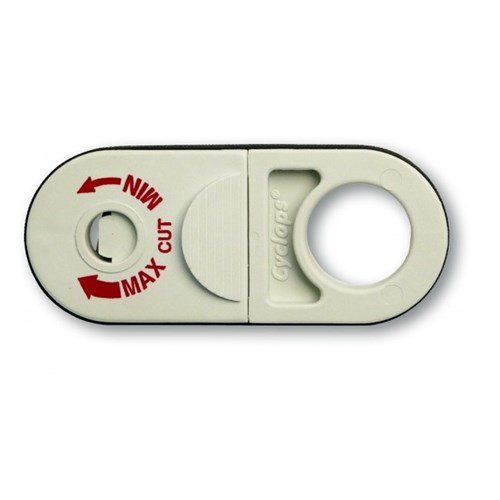

Cyclops®2 Cable Jacket Stripper
- Self-adjusts to automatically score PVC, Plenum and others without damaging braids, foil or conductors
- Ready-to-use out of the kit without having to make adjustments
- Works with shielded/unshielded twisted pair single & multi-core and fiber optic cables
- Accepts cable ODs 0.10" to 0.43" (2.5mm - 11mm)

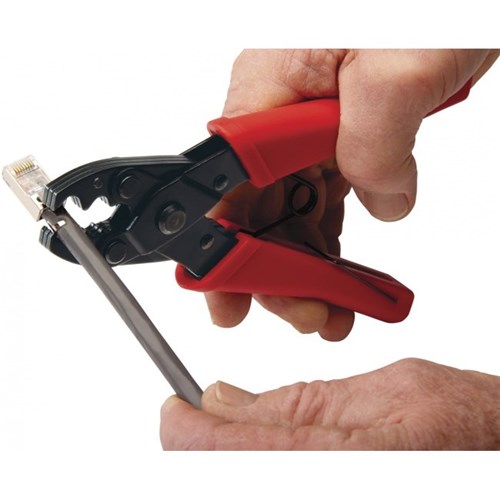

CT-360 External Ground Crimp Tool
- 360° crimp on the external ground tab of shielded RJ45 connectors
- Perform concentric termination with full control to prevent
over or under crimping - Dual cavity covers wide range of cable ODs ranging from 0.245" to 0.335" (6.2mm - 8.5mm)
- Spring-loaded, non-ratcheted design
- All steel frame, rust-resistant black oxide finish, molded plastic handles
