CONNECTORS & PORTS |
Video | HDMI 2.0 (lockable) or DisplayPort 1.2 (USB-C lockable alternate mode) |
USB port | 3x USB 3.0 (USB-C lockable) |

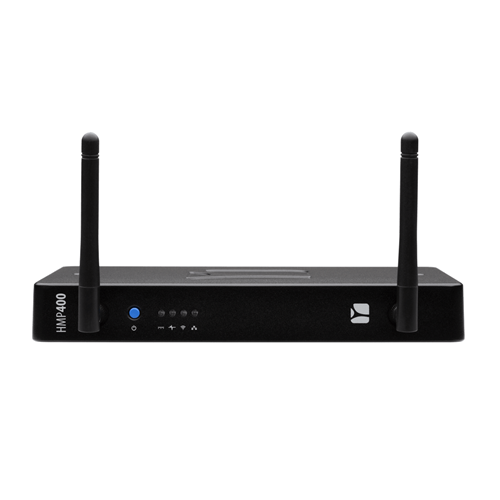

Network | Ethernet 1GbE, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az. HMP400W (with Wifi module): Wi-Fi IEEE 802.11a/b/g/n/ac Wave 2, 2x2 MIMO |
Power supply | Power over Ethernet (PoE+/802.3at) or USB-C lockable Power Delivery 2.0, 27W (min 3A@9V) |
SIZE & WEIGHT |
Size | Width: 7.87” / 200mm, height: 1.1” / 28mm, depth: 4.72” / 120mm |
Weight | 660g |
DSOSTM (DIGITAL SIGNAGE OPERATING SYSTEM) |
DSOSTM | Lightweight, high performance and secured operating system designed for digital signage enabling by default SpinetiX ARYATM cloud based service |
OS security | Cryptographically signed firmware packages, local access to OS restricted, Intel™ Boot Guard protection, Secure Boot |
Optional features | Different optional modes of use to be activated on top of the built-in SpinetiX ARYATM cloud based service |
PLAYER ENGINE |
Layer composition | Multi-layer, multi-video decoding capability, video with alpha channel |
Fonts | Built-in fonts (including Noto fonts) for any language. In addition, any custom font can be uploaded. Support for TrueType/OpenType fonts. |
Content languages | HTML5, SVG Tiny 1.2+ |
Scripting language | JavaScript (ECMAScript 5), jSignage™, WebStorage, XMLHttpRequest |
External data access | AJAX, REST, HTTP/HTTPS with custom certificates or SRP, raw TCP/UDP |
FORMATS |
Images | JPEG, PNG, GIF, SVG, PDF/A |
Media file formats | MPG, MP4, M4V, M4A, MOV, MKV, MKA, WMV, WMA, AVI, VOB, TS, MP3, AAC, WAV |
Video codecs | Multi-video decoding capable, 4K60p 4:4:4, H.264/MPEG-4 AVC: HP@L5.2, H.265/MPEG-H HEVC: L5.1, MPEG-2: MP@HL, MPEG-4: ASP, WM9/VC-1: AP@L3, MJPEG |
Audio codecs | AAC-LC, HE-AAC, MPEG Layer I, II, III (MP3), WMAv2, AC3 |
Data feeds | Built-in RSS app, Elementi feeds RSS, ICS, CSV, TXT, custom feeds (XML, JSON, JavaScript) |
DISPLAYS |
Video | DCI 4K (4,096×2,160), 4K UHD (3840x2160), 1080p (1920x1080), custom resolutions, etc |
Audio | Stereo digital (HDMI/DisplayPort), USB-C analog line-level & digital (accessory required) |
Control | HDMI-CEC, DisplayPort, serial port (advanced protocols, accessory required) |
NETWORK |
Protocols | DHCP, static IP, Zeroconf, IPv4, IPv6, NTP, Bonjour, SSDP, SNMPv1/v2c, HTTP/HTTPS, TLS-SRP, user root certificates, WebDAV, FTP, RTSP, RTP/UDP, 802.1x |
Remote configuration | Built-in HTTP server, HTTPS with user root certificates, RPC |
STORAGE |
Internal | 16 GB solid state, eMMC 5.1 Industrial MLC NAND with OS in higher endurance SLC area |
External | Hard disk (via USB 3.0) |
CHARACTERISTICS |
Processor | Intel™ Atom x5-E3930 |
Memory | RAM: 4 GB |
Power consumption | Typical 9W; MAX: 14W |
Operating temperature | Ambient range 32 - 104ºF / 0 - 40ºC, Relative humidity 10-90% non-condensing |
Real-time clock (RTC) | Accuracy ±1 min./month, backup by supercap (30 days) |
Usage | All components rated for 24/7 - 10 years operation, fanless sealed design. Engineered in Switzerland and made in Germany |
