Icron Technologies USB 3.0 Spectra 3022 Two Port Multimode Fibre 100m Extender

Product Code: IC 00-00330

Key Features

The USB 3.0 Spectra™ 3022 extends SuperSpeed USB 3.0 up to 100m (330 ft)

$1,246.66 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

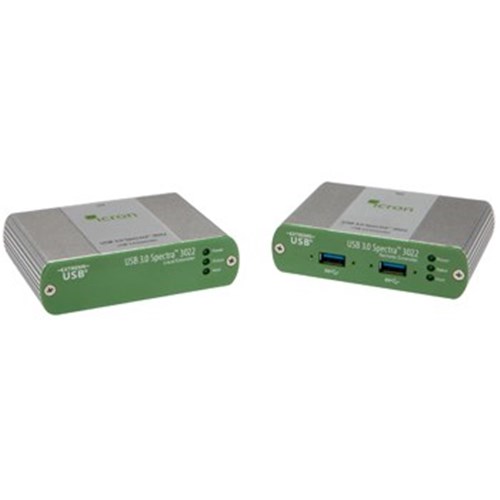

Icron Technologies USB 3.0 Spectra 3022 Two Port Multimode Fibre 100m Extender

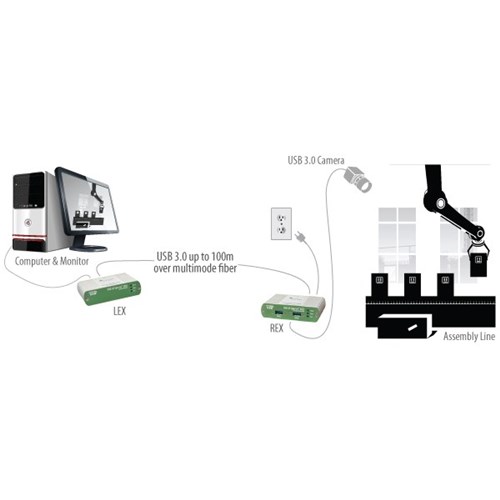

Take advantage of USB 3.0's blazing 5Gbps speeds up to 100m of distance over multimode
fiber. Machine Vision cameras, security cameras, and storage drives can be extended while
providing isolation and security.

Key Features:

  • USB 3.0 extension up to 100m
  • Delivers speed, isolation and security over multimode fiber
  • Supports USB 3.0 throughputs of up to 5Gbps
  • Integrated 2-port hub suitable for industrial environments
  • Rugged locking USB and power connectors
  • Enclosures with convenient pre-drilled holes for optional bracket mounting
  • Works with AIA USB3 Vision™ compliant devices

Includes the ExtremeUSB® suite of features:

  • Transparent USB extension
  • True plug and play; no software drivers required
  • Works with all major operating systems: Windows®, Mac OS X®, and Linux®

Applications:

  • Machine Vision camera extension
  • Post-production editing
  • Security camera extension
  • Remote storage
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

RANGE:
OM2 Multimode Fiber: Up to 50m (165 ft)
OM3 Multimode Fiber: Up to 100m (330 ft)
SPEEDS:
USB 3.0: Up to 5Gbps (Not backward compatible with USB 2.0/1.1)

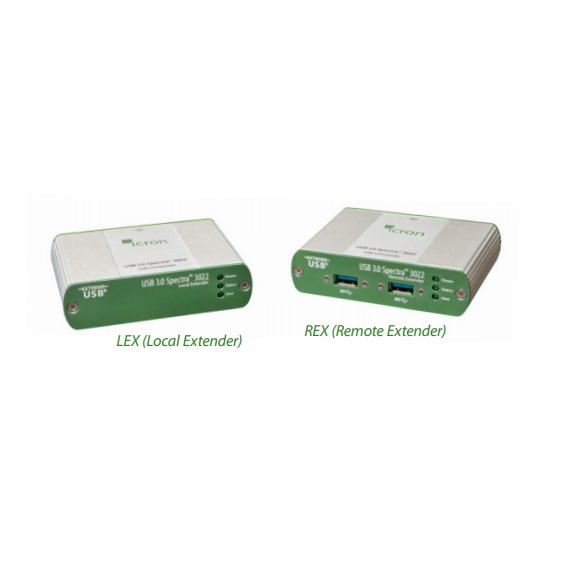

LEX:
USB Connector: 1 x USB 3.0 Type B Locking Receptacle per AIA USB3 Vision™ specification
Link Connector: 1 x Duplex LC Connector
Dimensions: 100mm x 76mm x 26mm (3.94" x 2.99" x 1.02")
Enclosure Material: Anodized Aluminum
REX:
USB Connectors: 2 x USB 3.0 Type A Locking Receptacles per AIA USB3 Vision™ specification
Link Connector: 1 x Duplex LC Connector
Dimensions: 100mm x 76mm x 26mm (3.94" x 2.99" x 1.02")
Enclosure Material: Anodized Aluminum
Power Connector: 5V DC, 3A, Locking, 2.5 mm, center-positive
Available Current: 900mA for each USB Port
Power Supply: 100-240V AC Brick, Locking
ENVIRONMENTAL:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 170°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
COMPLIANCE:
EMC: FCC (Class B), CE (Class B)
Environmental: RoHS2 (CE)
Machine Vision: Works with AIA USB3 Vision™ compliant devices
