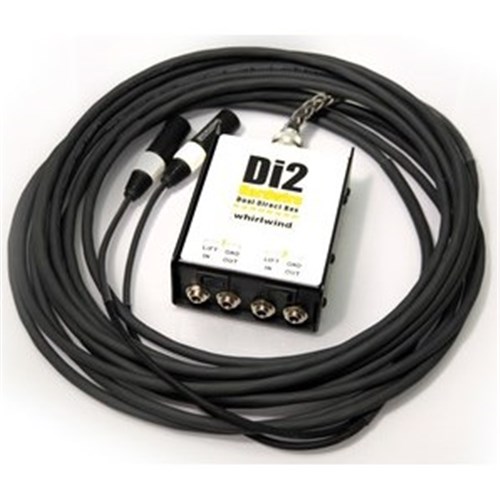

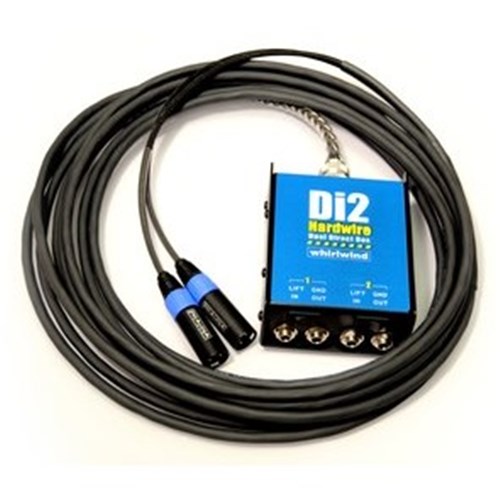

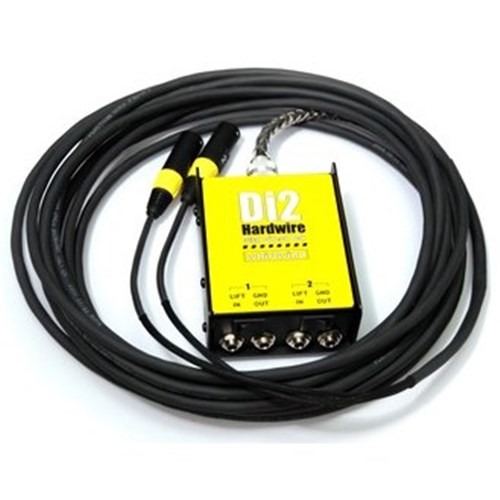

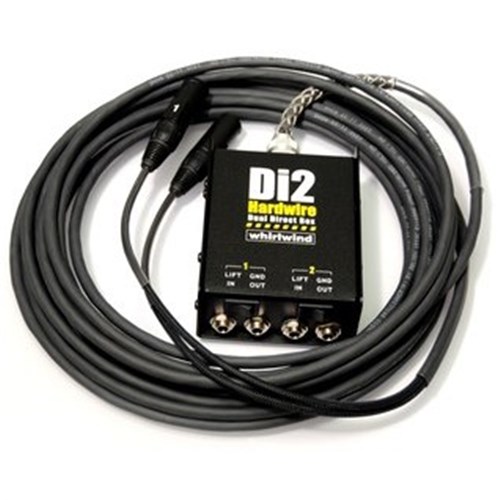

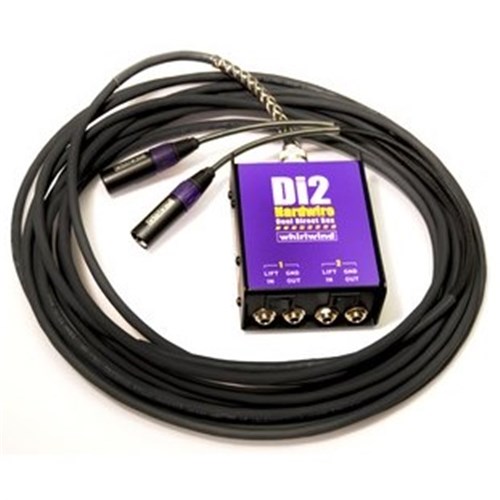

The DI2 is a hardwired version of our Director2, which combines features found on two of our DIRECTOR ® direct boxes in one unit. Perfect for converting unbalanced signals from stereo keyboards, acoustic guitar preamps, CD and tape players, computer sound cards, etc.
The DI2 uses the same professional grade TRHLM transformer found in the legendary Director. Standard lengths are 15', 25' and 50'.
Each section features:
- 1/4" parallel wired in/out jacks
- Ground Lift switch to help eliminate hum and buzz
- Uses Whirlwind's TRHL-M transformer with metal shield
The input and output grounds of each section are isolated from each other. This allows the DIRECT2 to be used as if it were two completely separate DIs without fear of creating ground loop interaction.
Model #s -
DI2-015-xx
DI2-025-xx
DI2-050-xx
xx = BK, WH, BL, VT, YL
Impedance Ratio (input to output per channel): 133:1 Frequency Response: 20Hz-20kHz ±1dB
Level Change (input to output): -20dB (pad out), -40dB (pad in)
